e-series mobile vacuum unit lpe45

Deliver a cleaner working environment

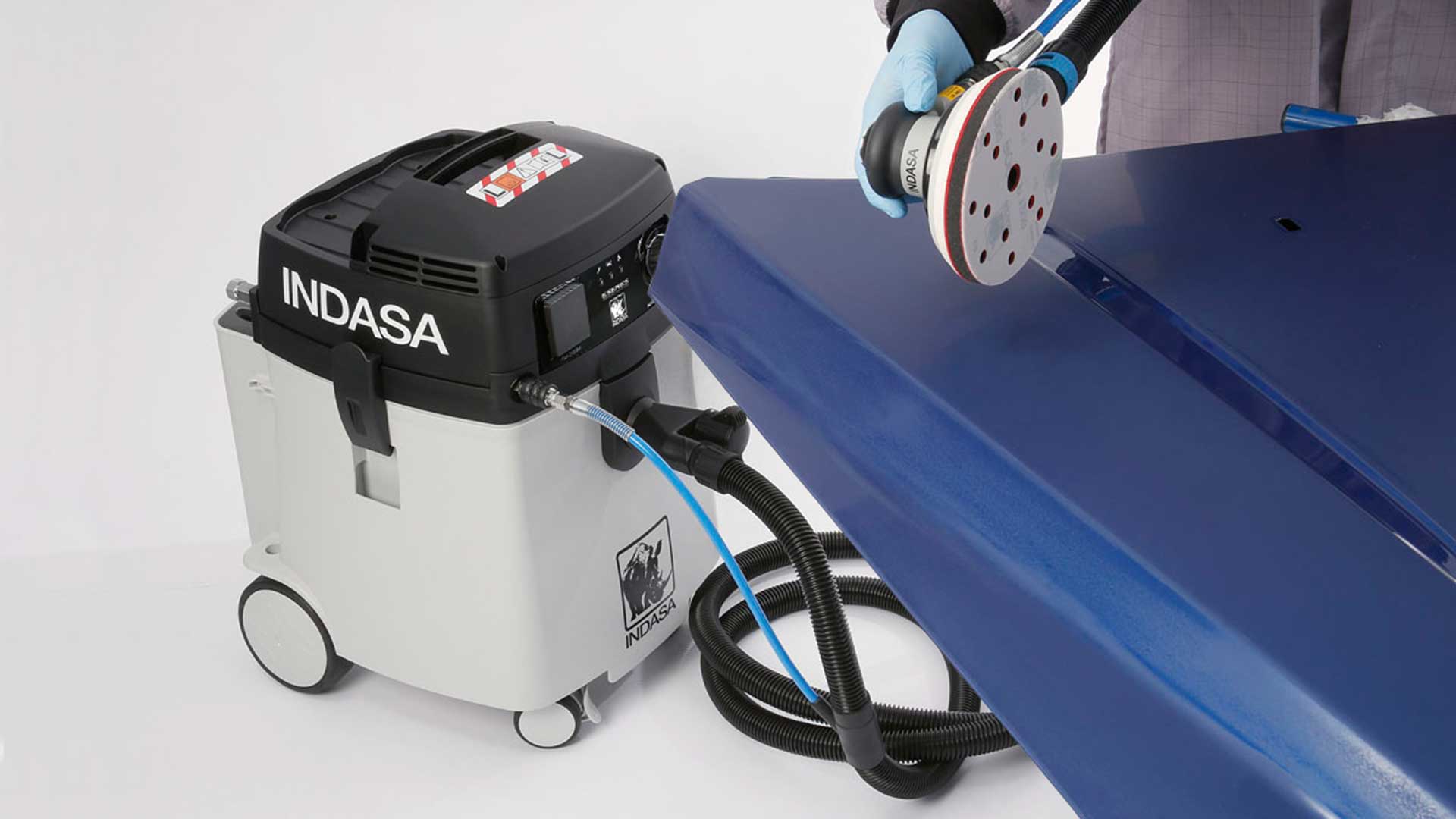

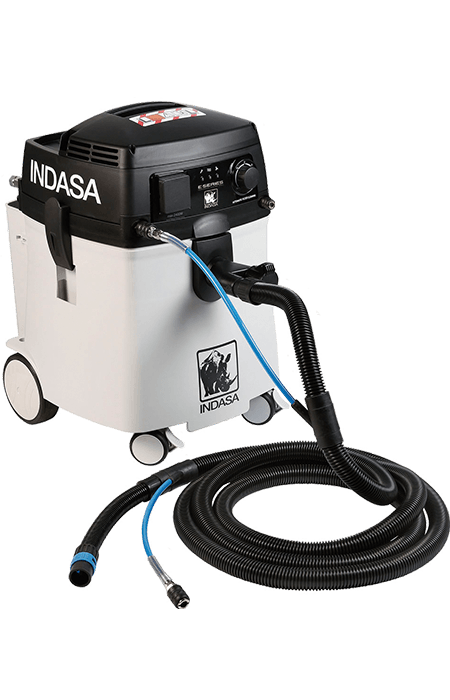

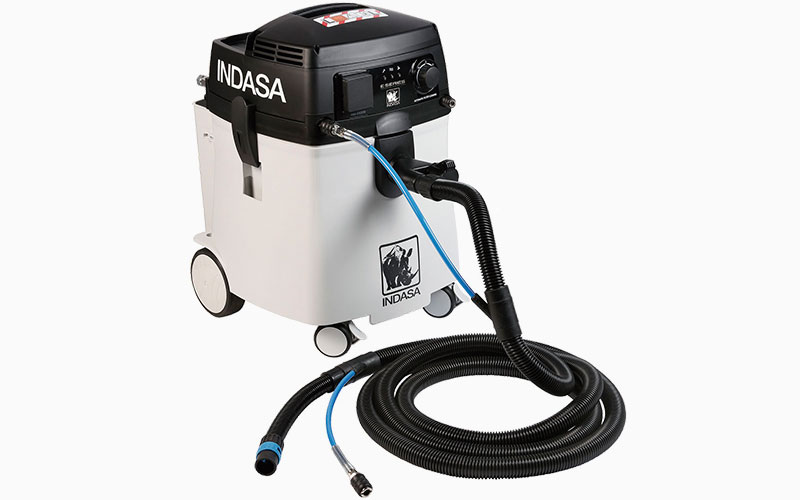

INDASA Abrasives E-Series Mobile Vacuum Unit LPE45

Overview

Dust extraction on demand - electric or pneumatic

45 litre dust collection capacity
INDASA Abrasives E-Series Mobile Vacuum Unit LPE45

Compact design

Fully portable throughout the workplace

  • Features and Benefits

    Gain a comprehensive understanding of how you can directly benefit from the features and core characteristics of our tool
    Features
    &
    Benefits
    Advanced composite materials
    Optimum operator comfort
    Fully compatible with INDASA's Abrasives System
    Maximized performance
    Vacuum dust extraction
    Cleaner working environment
    Compact design
    Portable throughout the bodyshops
    Self-cleaning dual filtration
    Prevents filter clogging
    Manual/Automatic start up
    Multifunction intelligent control, pneumatic & electric tool operation
    E-series technology
    Portable throughout the workplace
    Automatic double filter cleaning
    Less maintenance, improved performance and workplace environment
    High performance motor
    Powerfull suction capacity
    Low noise
    improved operator comfort

    Substrates Suggestions

    List of the substrates on which this tool can be used
    Top Coats
    Clear Coats
    Wood Coatings
    Fillers
    Primers
    Fibre Glass
    Gel Coat
    Substrates

    Applications Suggestions

    Check the application suggestions for this tool across all markets
    Dust extraction
    Applications

    Technical Specifications

    Develop a deeper knowledge about the characteristics of this tool
    Swipe for more

    Weight
    13,5 kg
    Working Pressure
    6 bar
    Air Inlet Thread
    3/8" G female
    Noise Level EN 60704 -3
    67 dBA
    Voltage
    220 V
    Mains frequency
    50 / 60 Hz
    Power
    1200 W
    Power Output
    2400 W
    Filter class EN 60335-2-69
    L
    Class of Protection
    IP X 4
    Filter Surface Area
    1 m²
    Container Volume
    45 l
    Dust bag capacity
    5 kg
    Hose Connector
    29 mm
    Pneumatic Connection
    1
    Dimensions HxWxD
    63,5x45x45 cm
    Package Qty.
    1

    Suited for

    Automotive Refinishing icon black
    Automotive Refinishing
    icon decorative
    Decorative
    Suited for

    ACCESSORIES

    What is Included

    Unbox, set it up and get to work. This machine comes with the following accessories meant to simplify your work

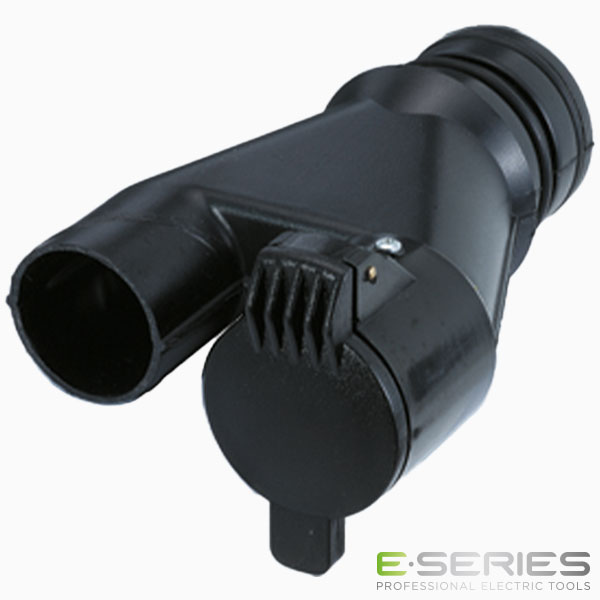

    INDASA Abrasives 2-way connector
    2 Way Connector

    2-way connector - suitable for both LE30 and LPE45 dust extraction units

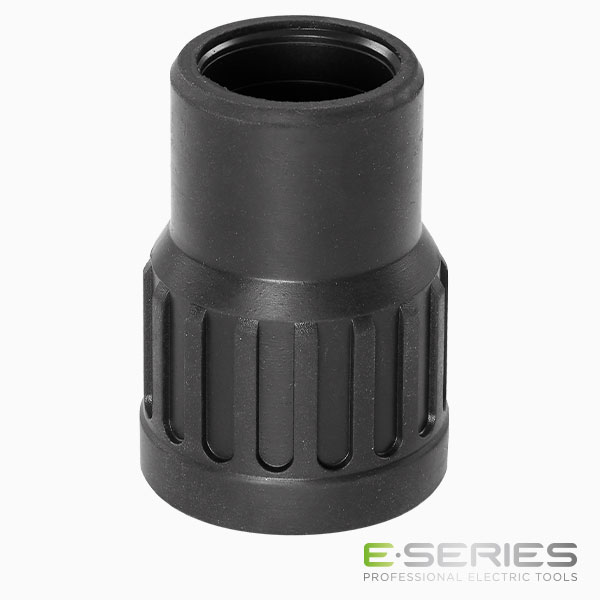

    INDASA Abrasives Threaded Hose Adaptor
    Threaded Hose Adaptor

    Hose adaptor - suitable for both LE30 and LPE45 dust extraction units

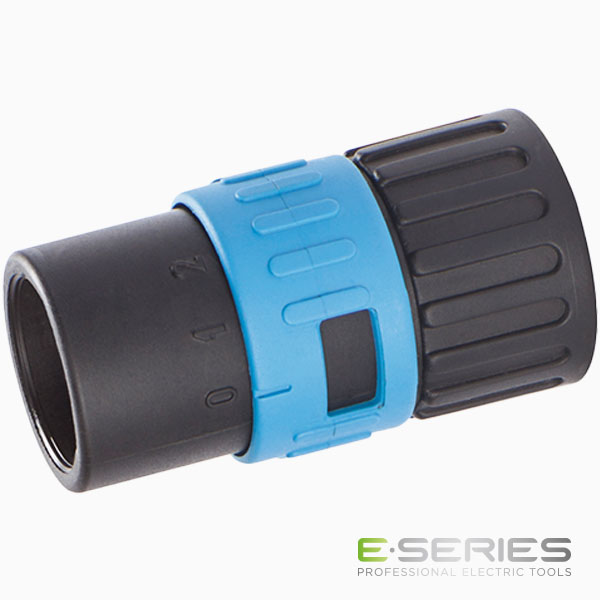

    INDASA Abrasives Hose Gauge Adaptor
    Hose Gauge Adaptor

    Hose adaptor - suitable for LPE45 dust extraction unit

  • Spares
    Close
    Part Number
    Description
    Qty/box






























    Pages
    of 1
    No info
    Loading
    Available Documents
    Close
    Documents
    VACUUM UNIT MANUAL.pdf
    pdf
    (20.5 MB)
    INDASA_Vacuum Unit Exploded Draw.pdf
    pdf
    (1.1 MB)
    INDASA - WARRANTY TOOLS.pdf
    pdf
    (910.6 kB)
    INDASA - GENERAL SAFETY INSTRUCTIONS.pdf
    pdf
    (2.1 MB)
    Dust Extraction Unit LPE45 E-Series.pdf
    pdf
    (846.5 kB)
    ULTRAVENT Brochure.pdf
    pdf
    (1.6 MB)
